Customizable/Programmable.
Hand-made out of Steel Plate.
High performance dual core MCU with LUA script Engine.
What's included

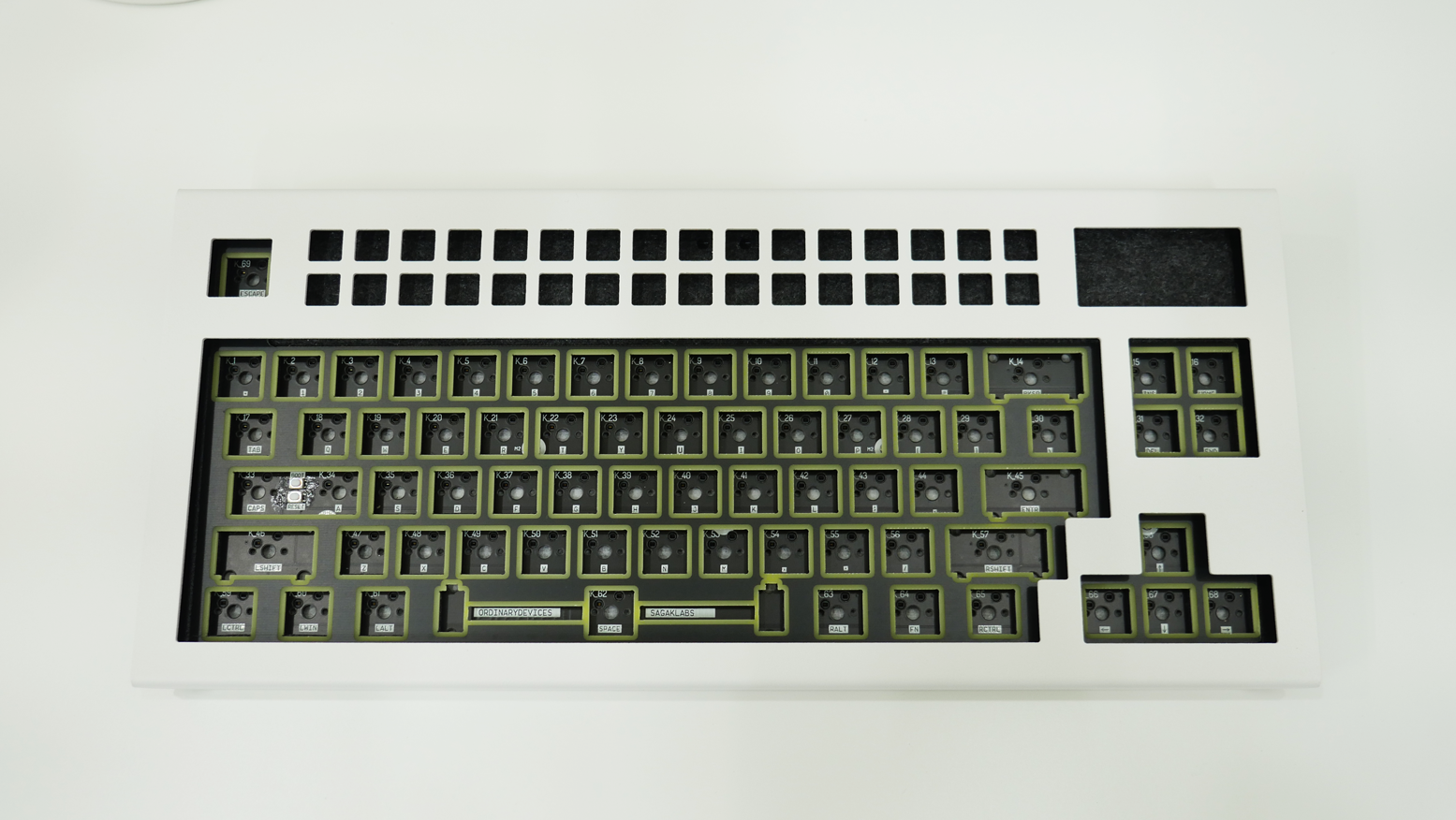

- Housing Set
- PCB Set
- OLED + Rubber Pad + Cable
- USB-C daughter board* **
- FR4 Plate
- Mute Foam(EVA/PORON)
* Unified USB board compatible
** comes with 4pin JST cable.
📢 Build Instruction
* FIRMWARE FOR THIS BOARD
IS STILL UNDER DEVELOPMENT
EVOLVING.
PLEASE REFER TO THE DEVPAGE
Materials
Materials
Steel Plate Housing
FR4 / ALU Plate

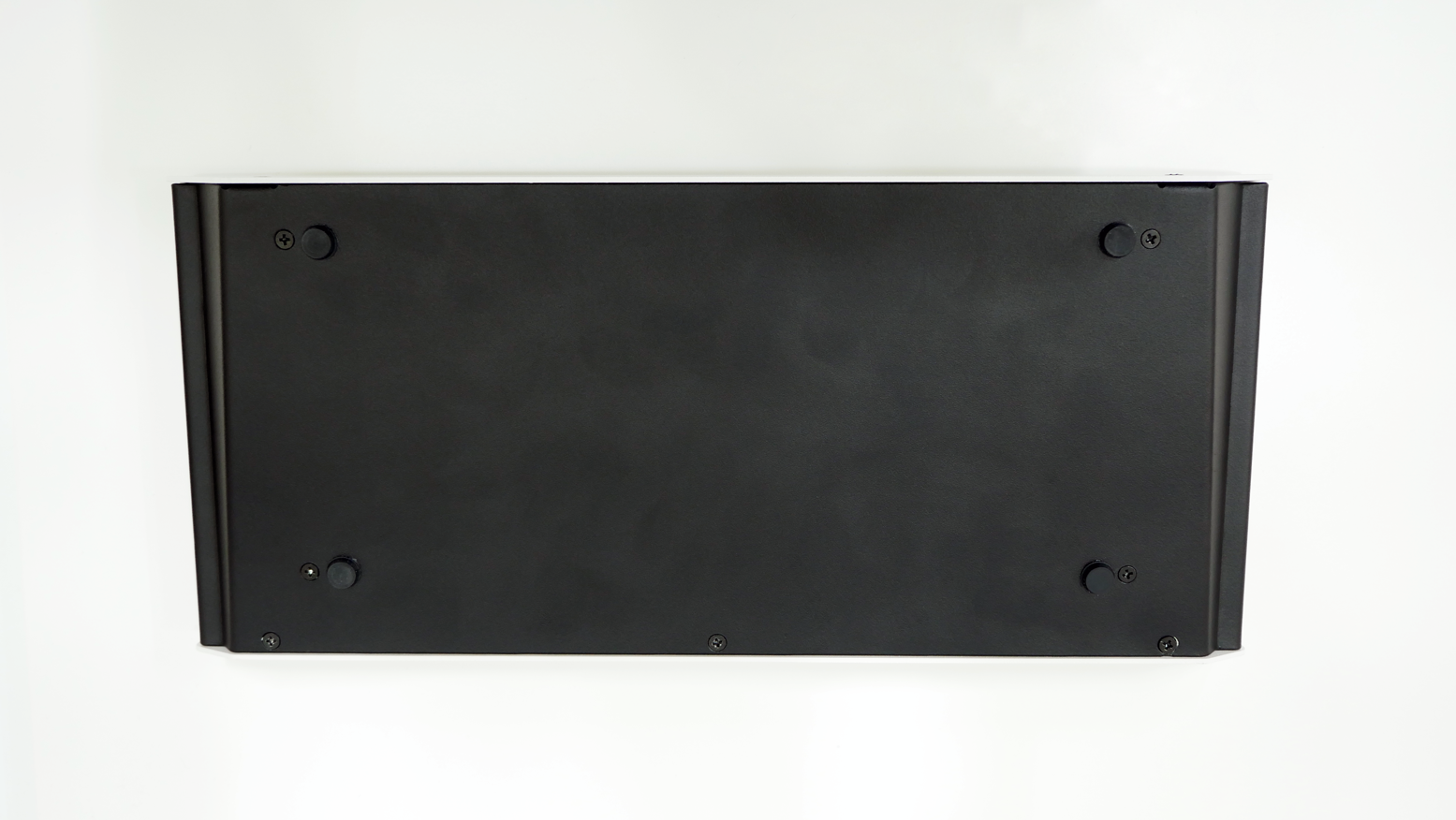

Bottom Housing Fix PCB

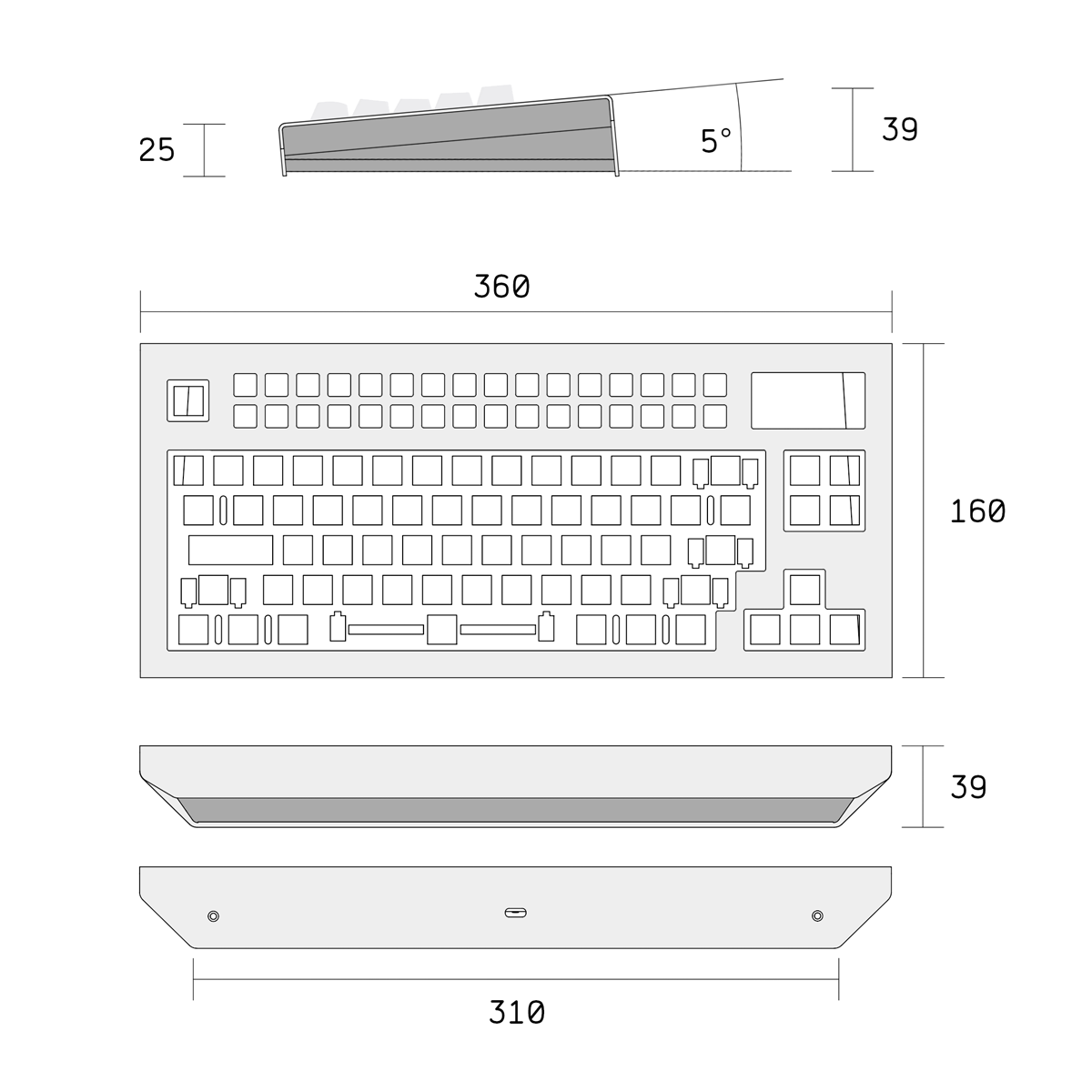

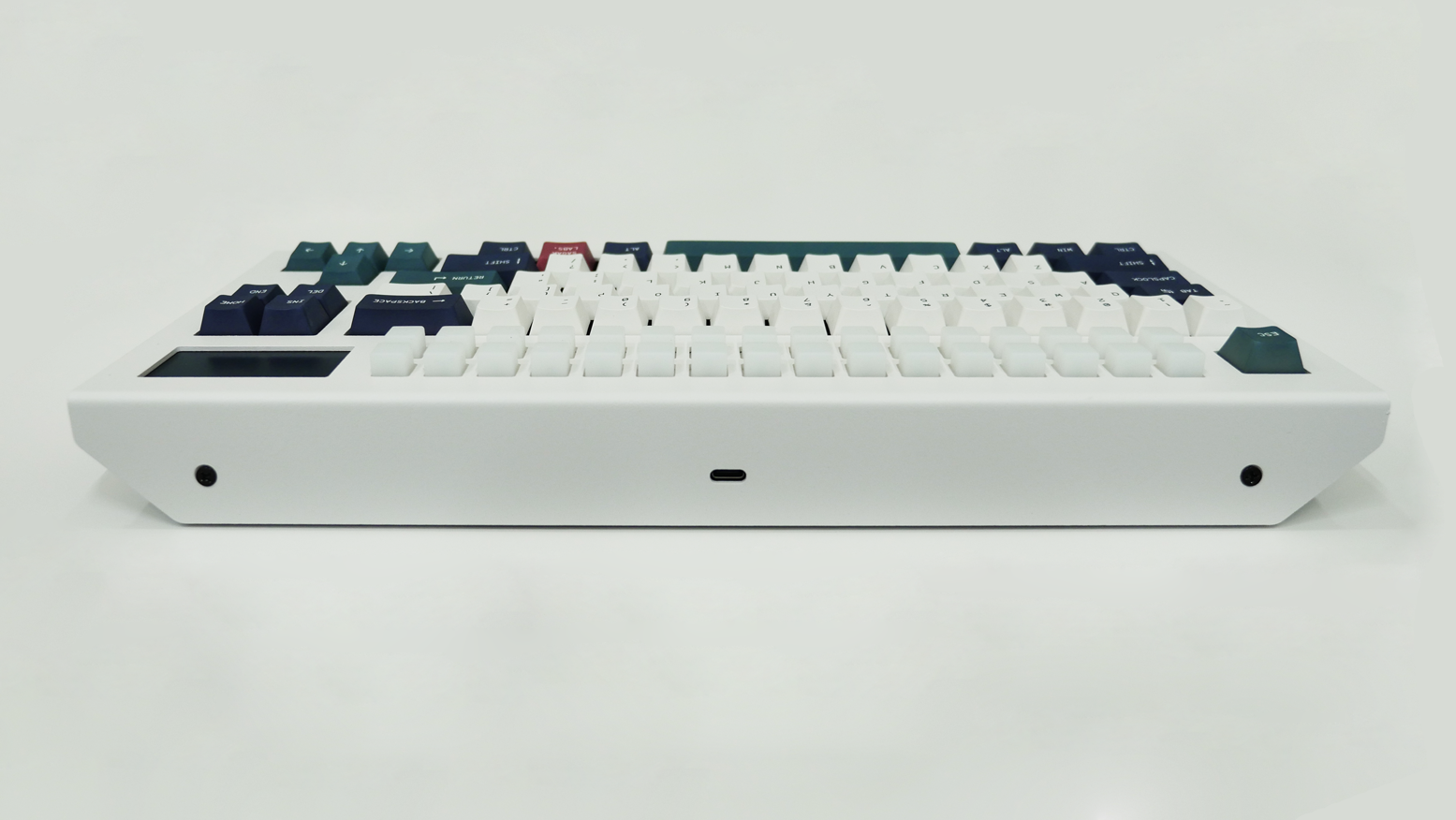

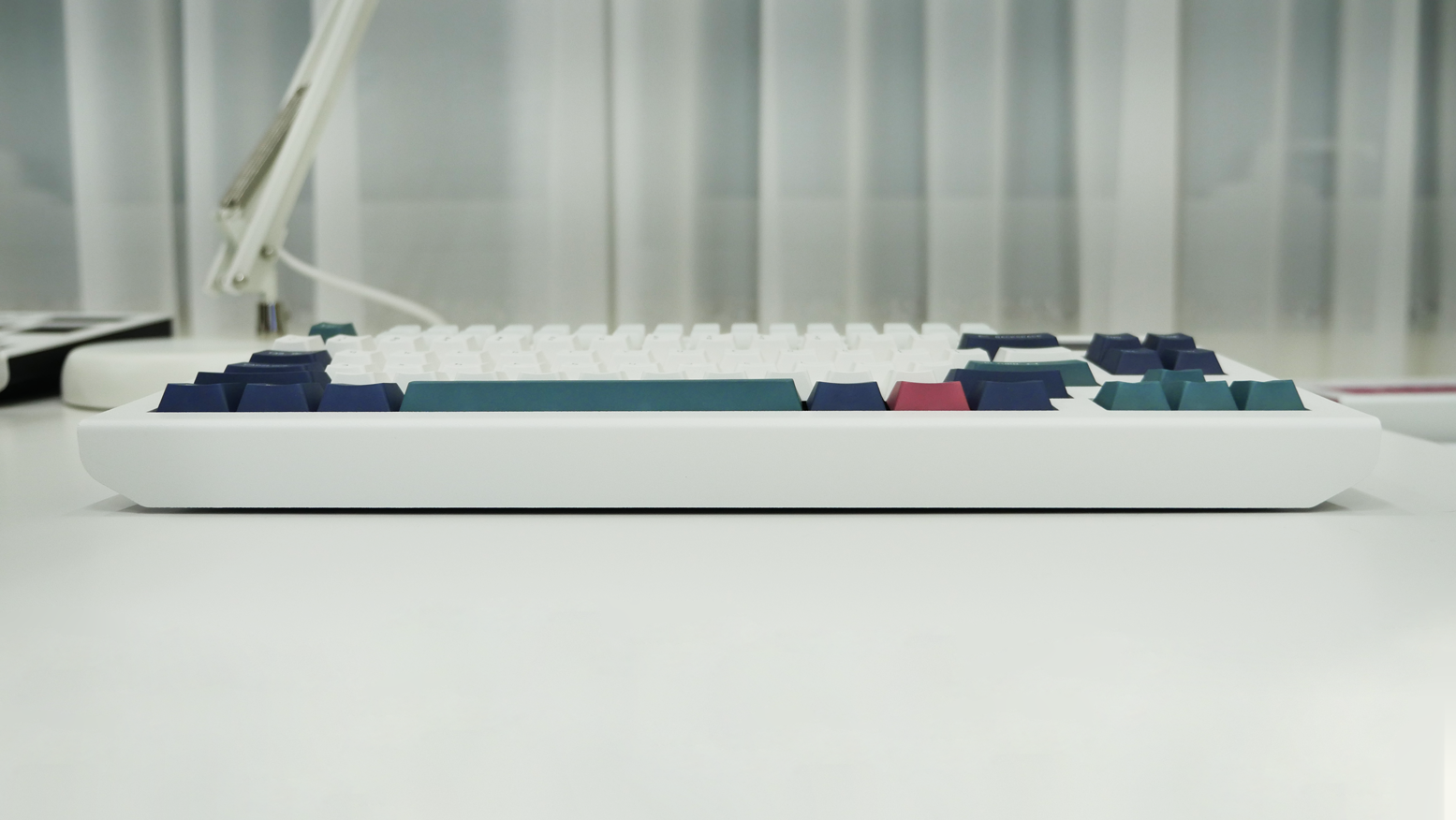

Dimensions
Dimensions
Width - 360mm
Depth - 160mm
Front Height - 25mm
Rear Height - 39mm
Slant - 5 degrees.
Weight - > 2.5kg
What you need to finish the build

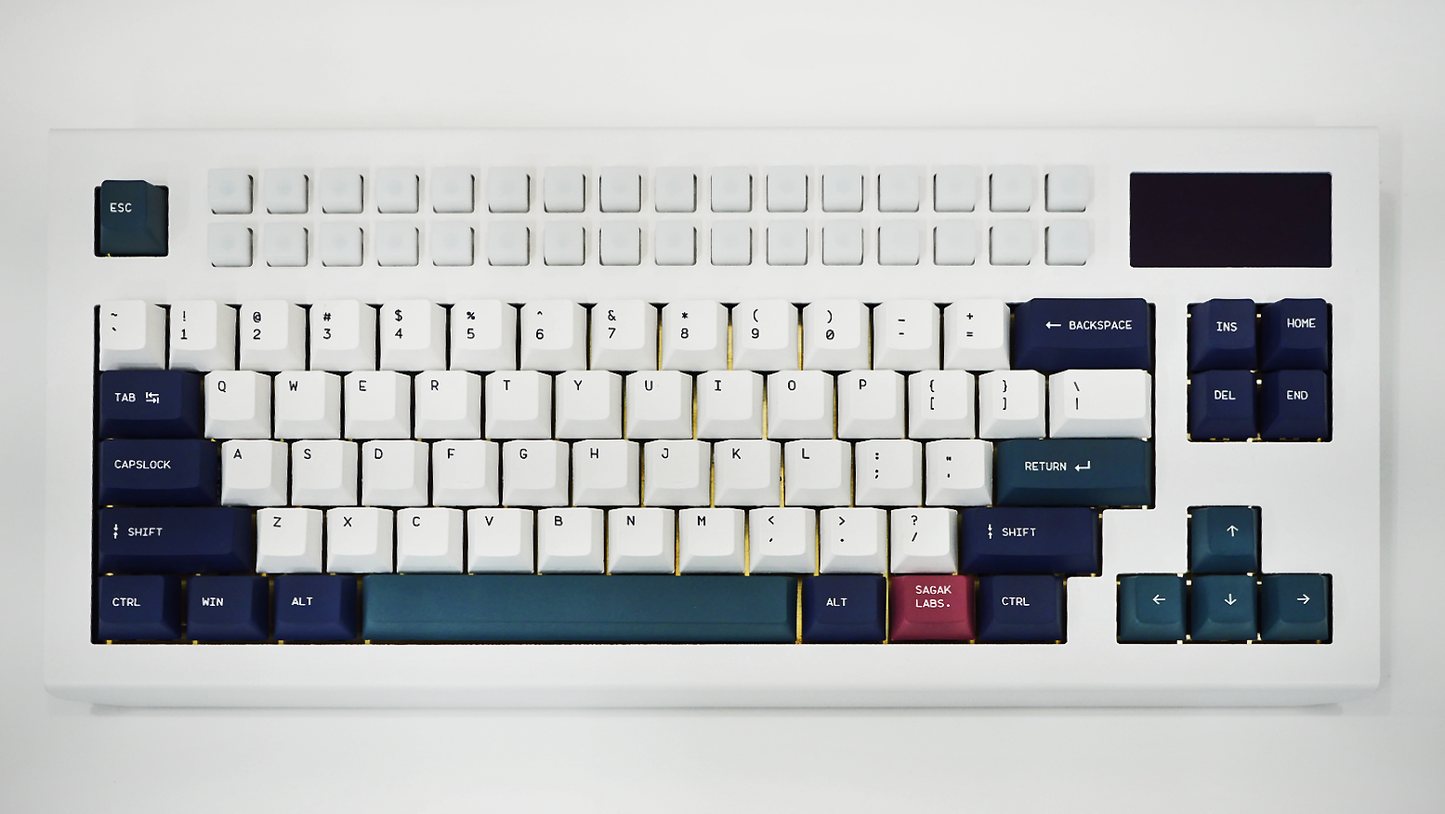

You need 69 [Switches], a set of [Keycaps], with
4(2U)+1(6.25U) [Stabilizers]. Lubricant is optional.
Note that the right-shift-key for the bitt101 is 2U.
SWITCHES
KEYCAPS
STABILIZERS
Prologue
We started a quest of making a keyboard with fun, and useful features. Things seemed happy until we find out the features we wanted aren't easy to realize on current keyboard platform, such as QMK/VIA.
However our desire to implement all different kinds of stuff on a keyboard didn't stop.
That lead us to rebuild the whole thing including the firmware, and of course the PCB. Only this time, with more powerful microprocessor.
-

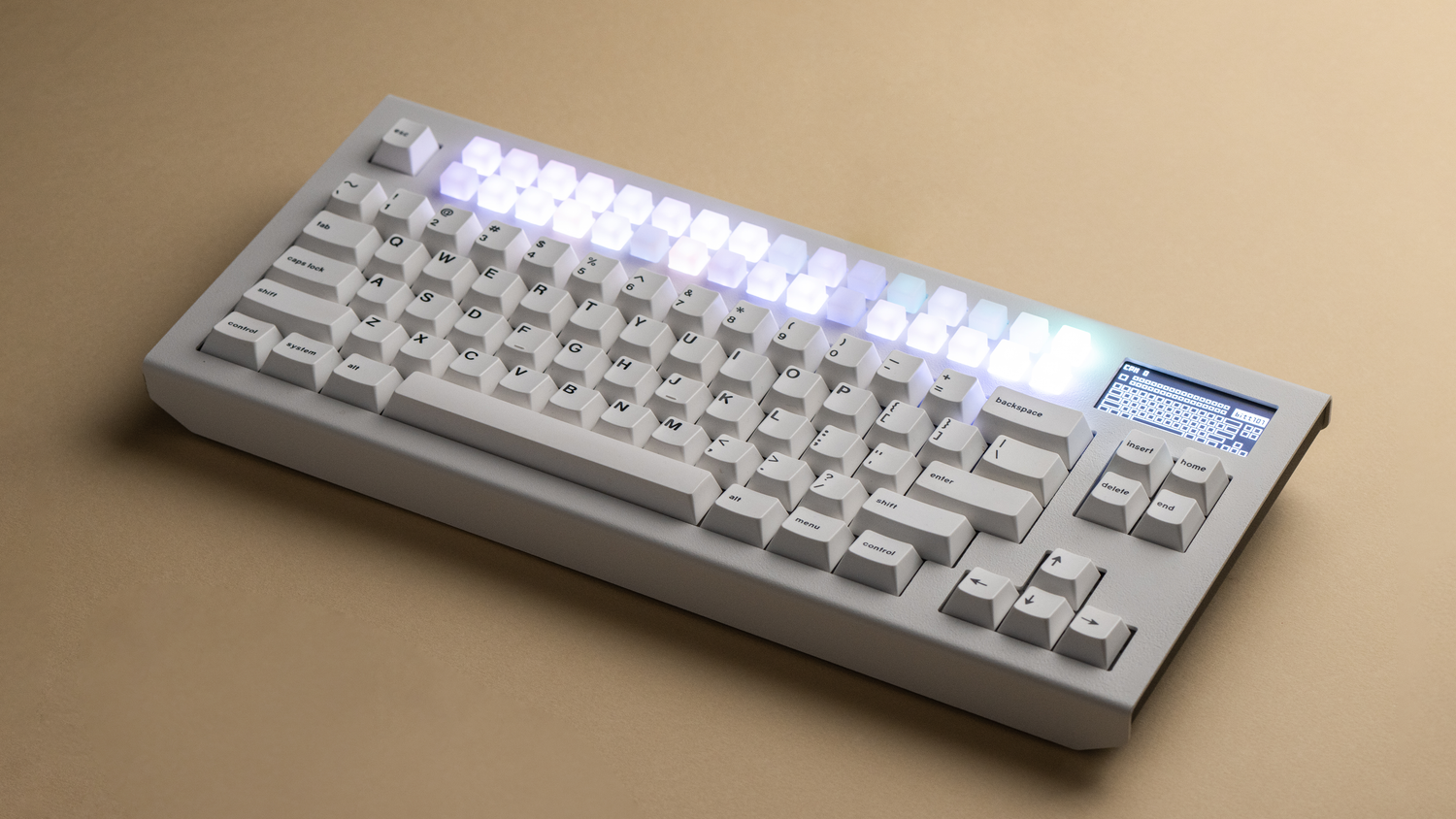

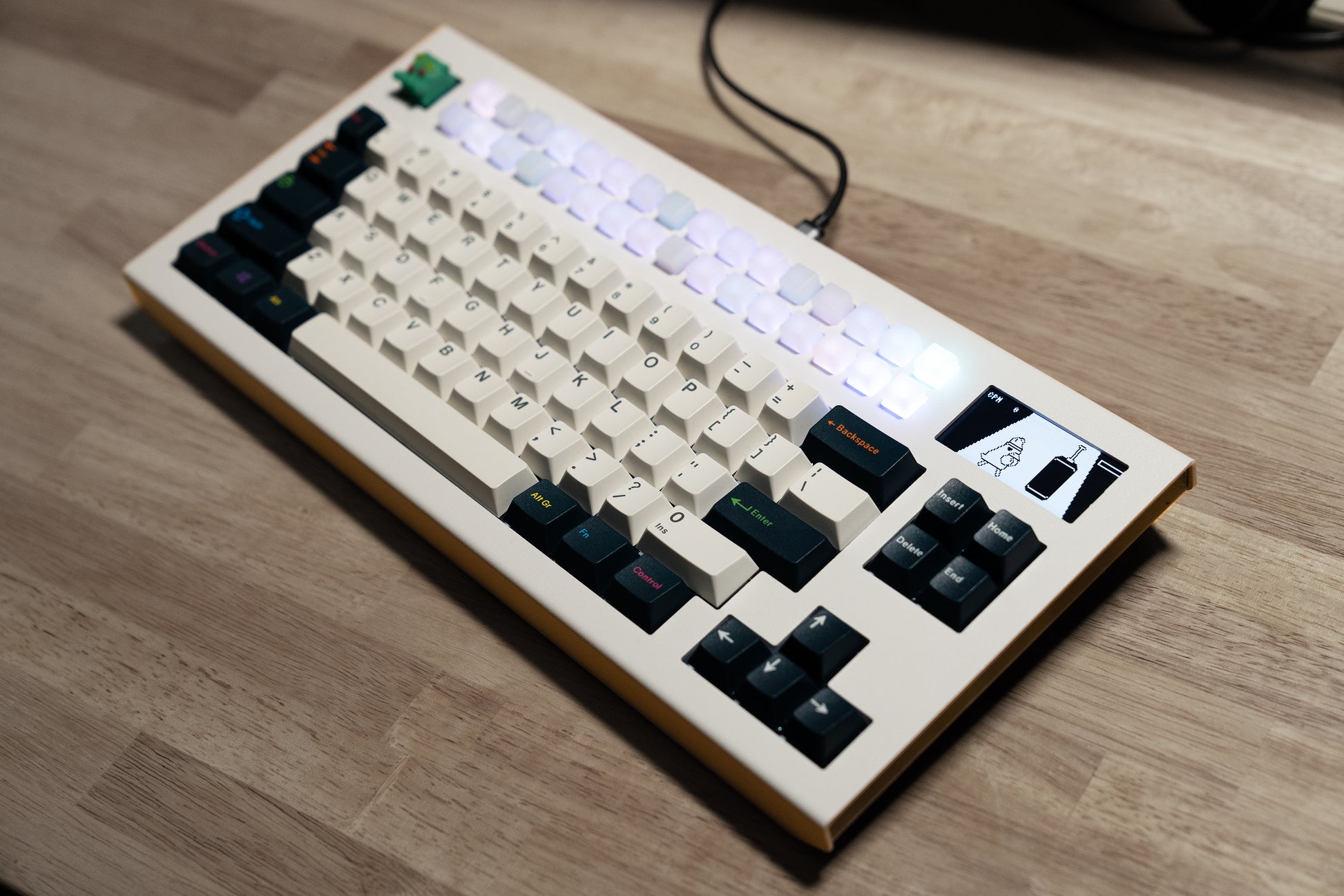

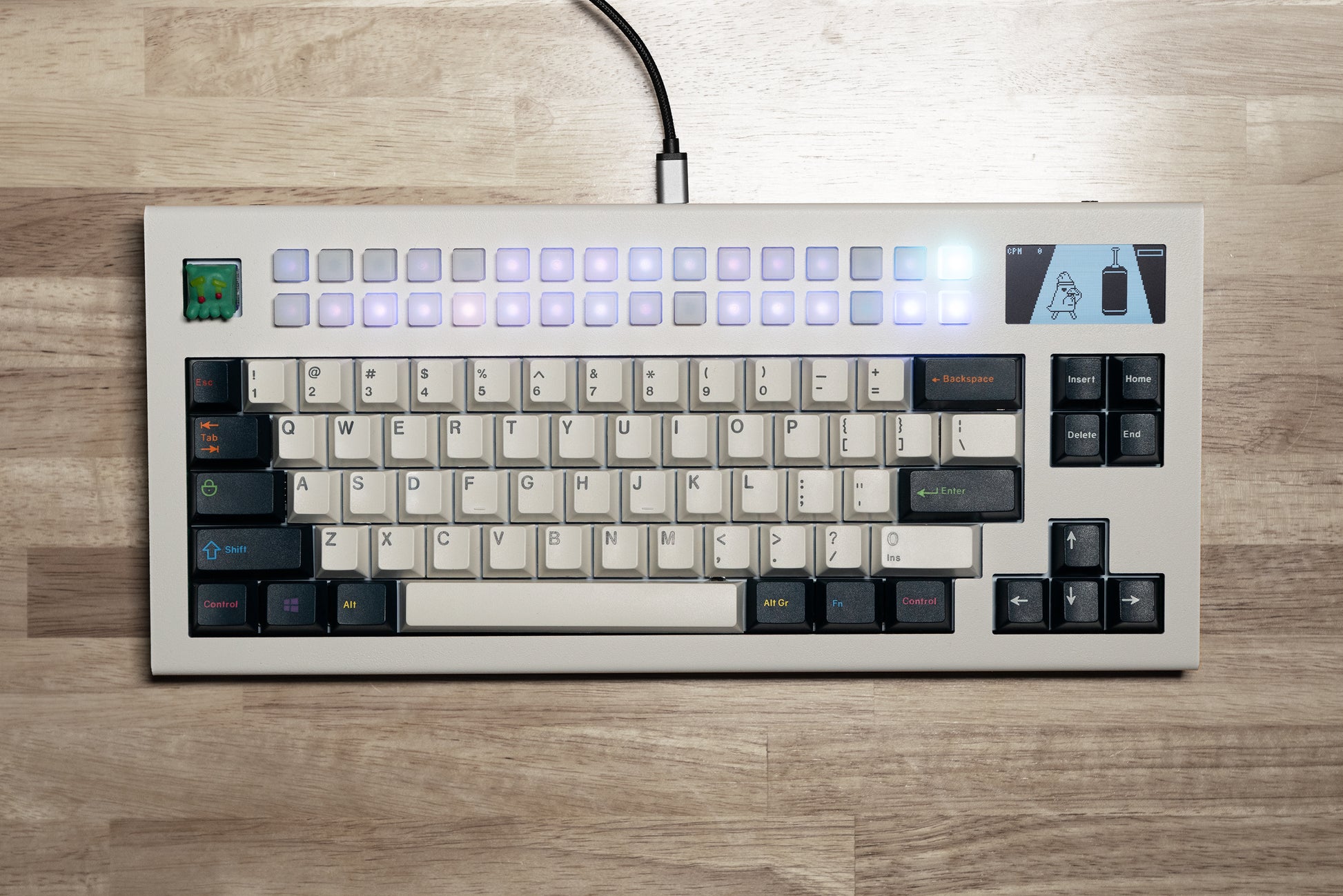

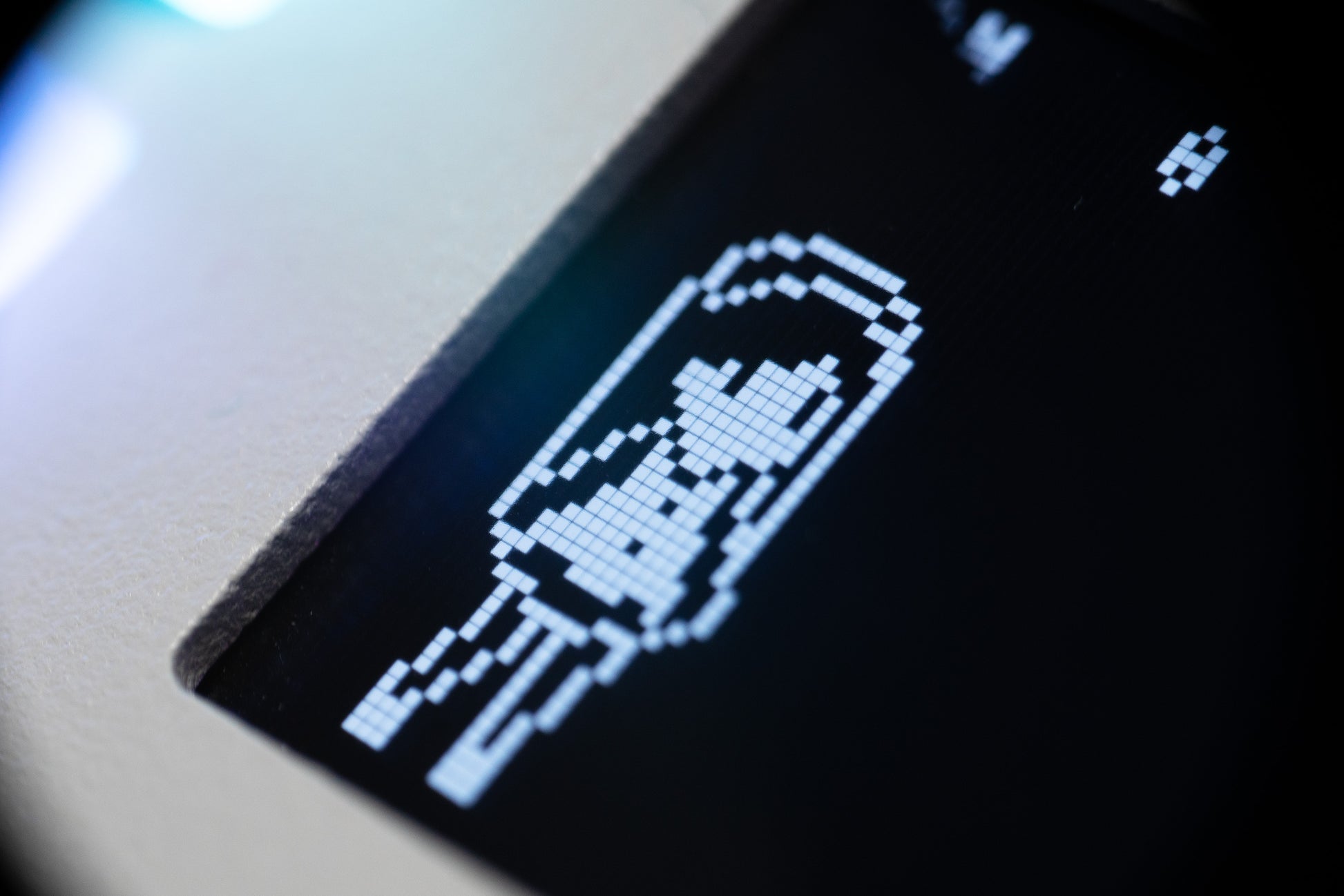

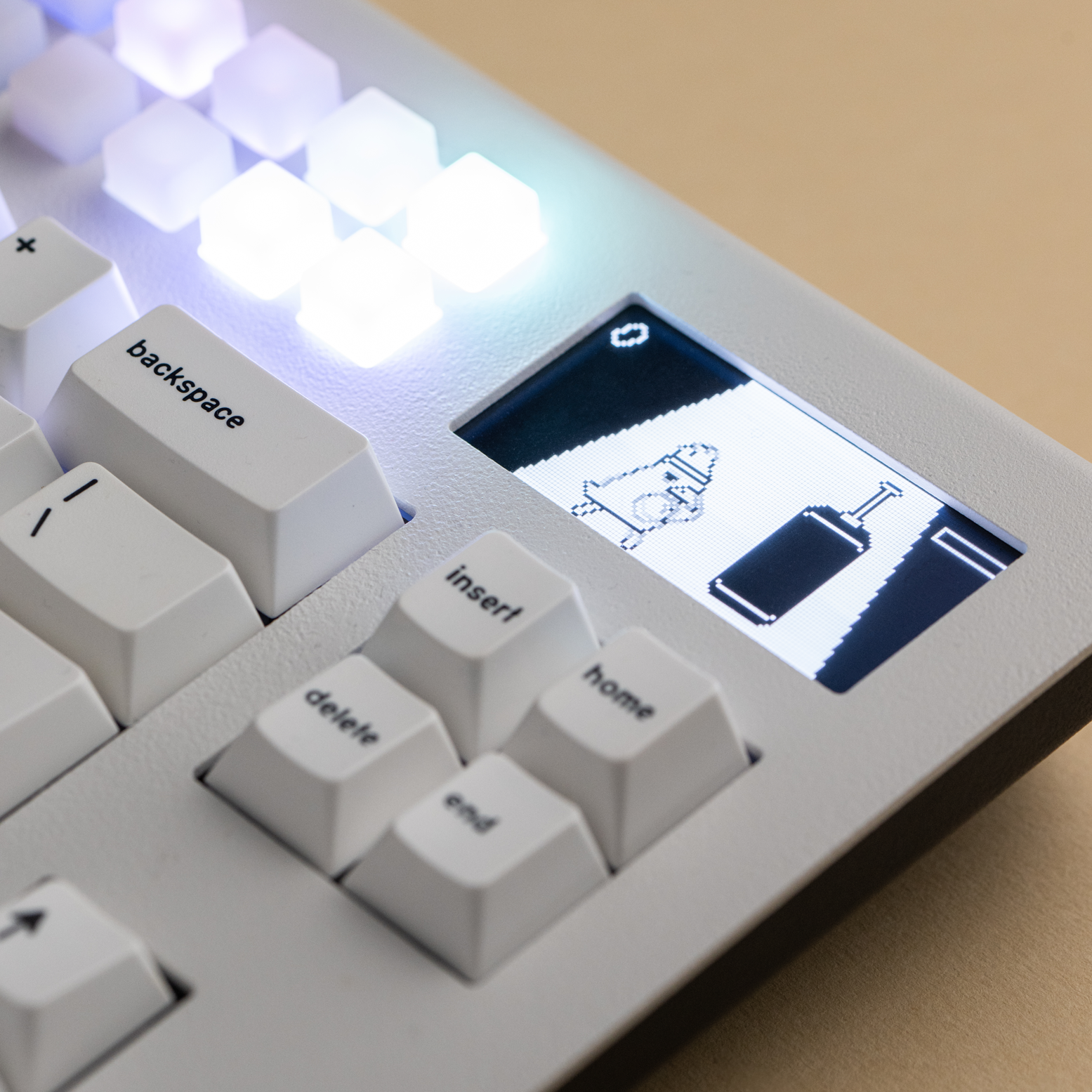

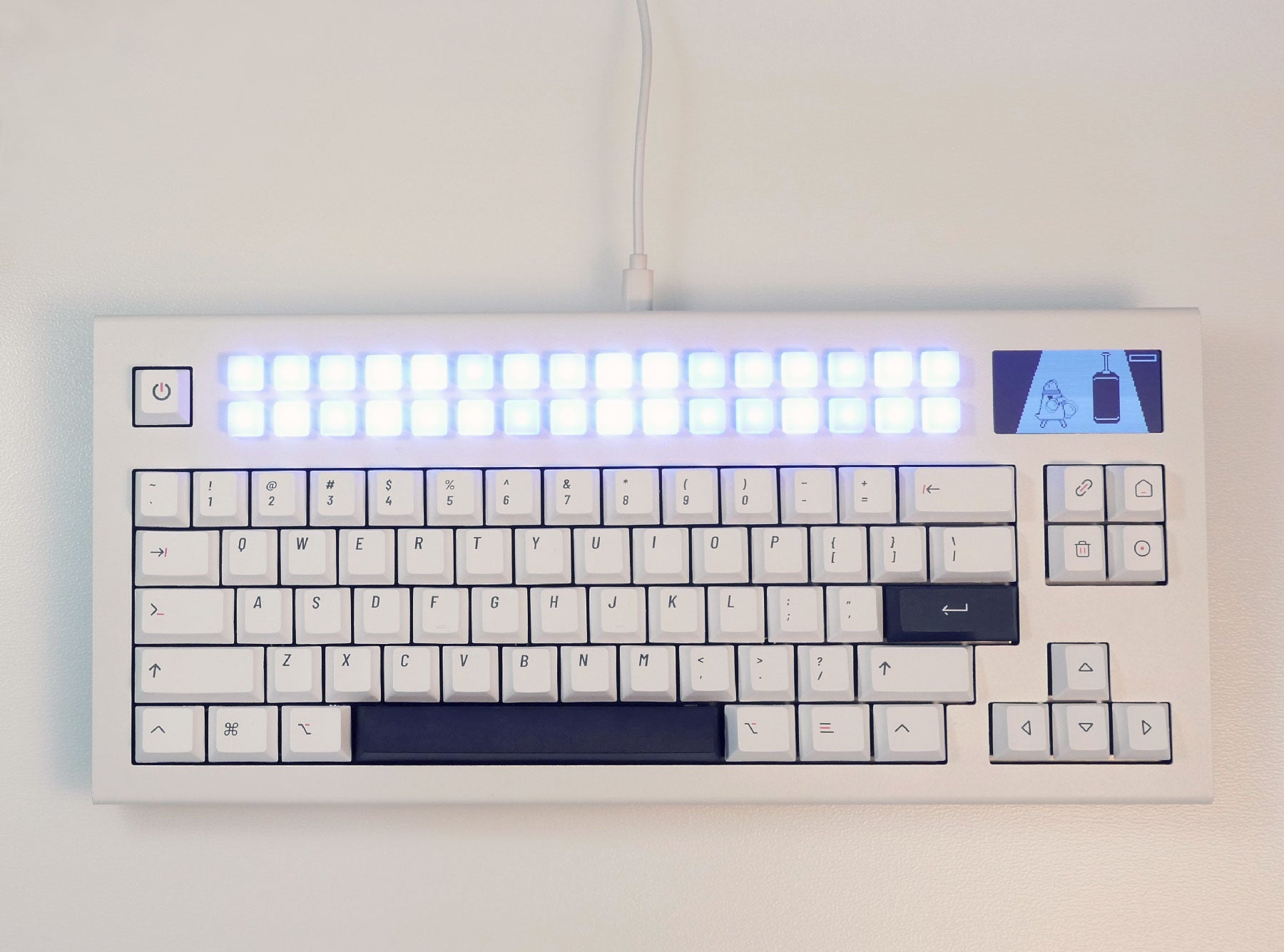

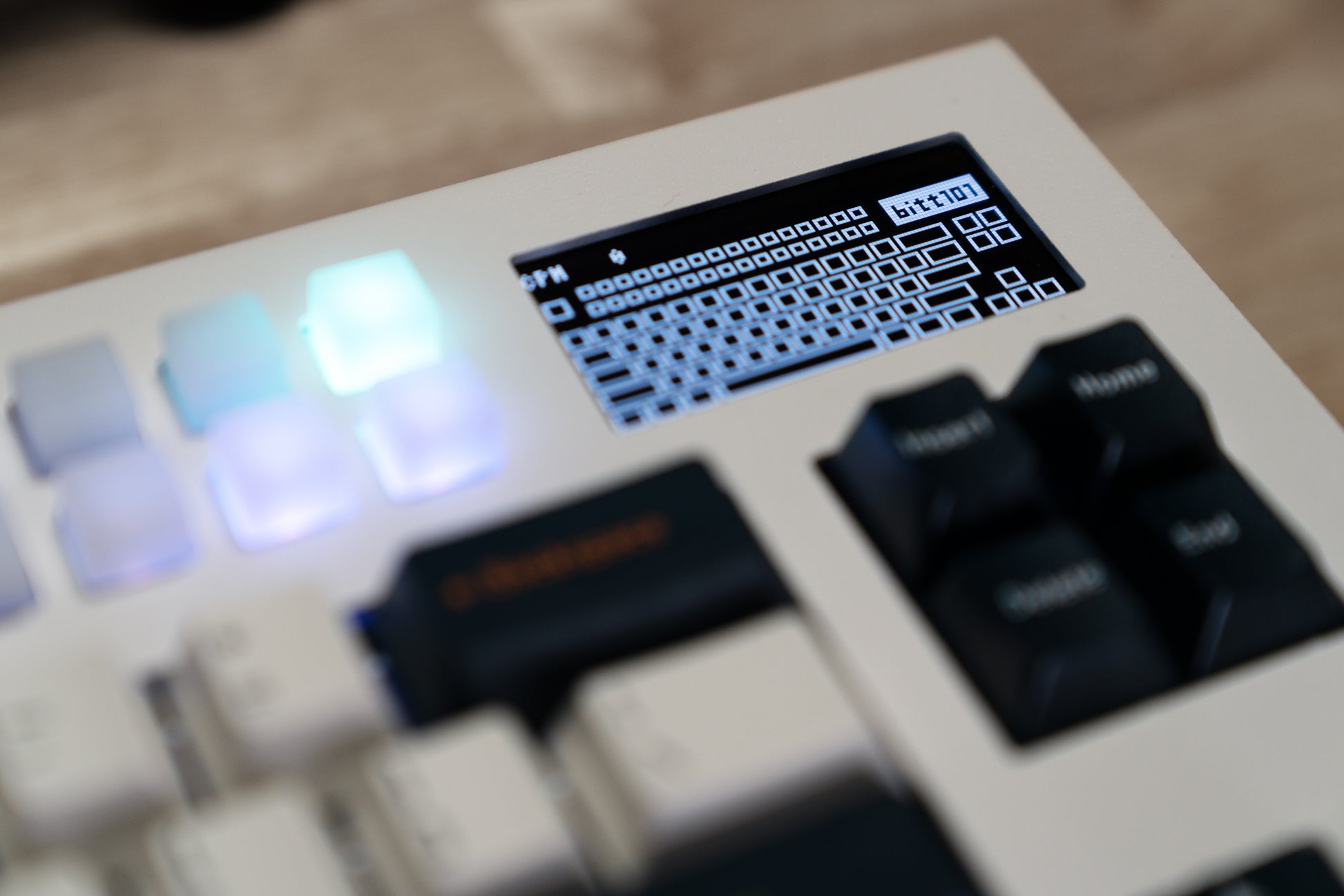

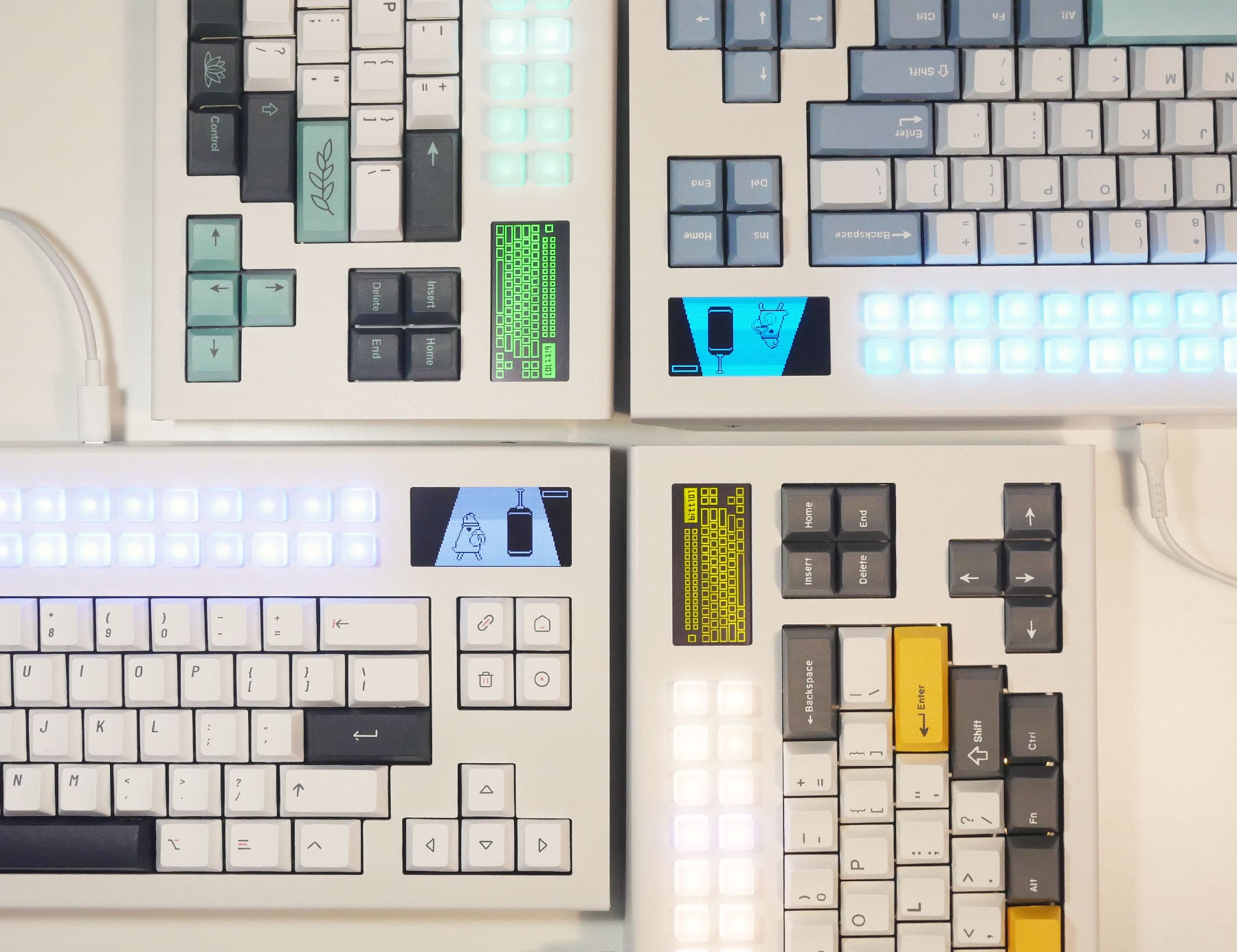

Smooth OLED Display

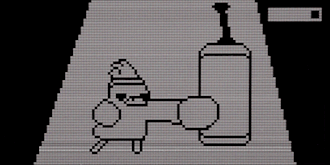

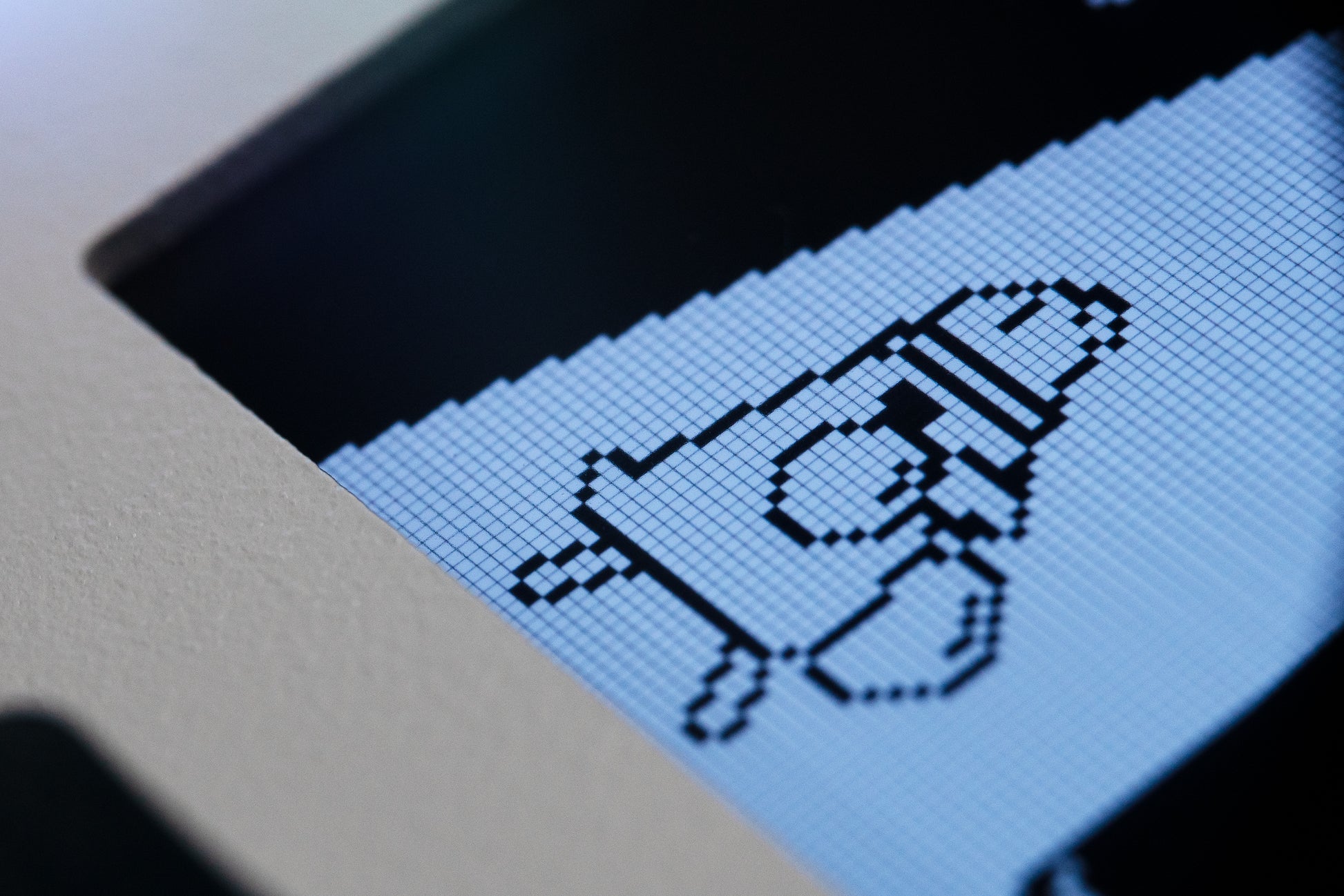

Necessity of a screen on a keyboard is arguable. But it is clear that we WANT one, and it's better be nice and smooth. Our OLED can display 60fps easy. Plus we're implementing useful, as well as fun features like the chieken boxer!
-

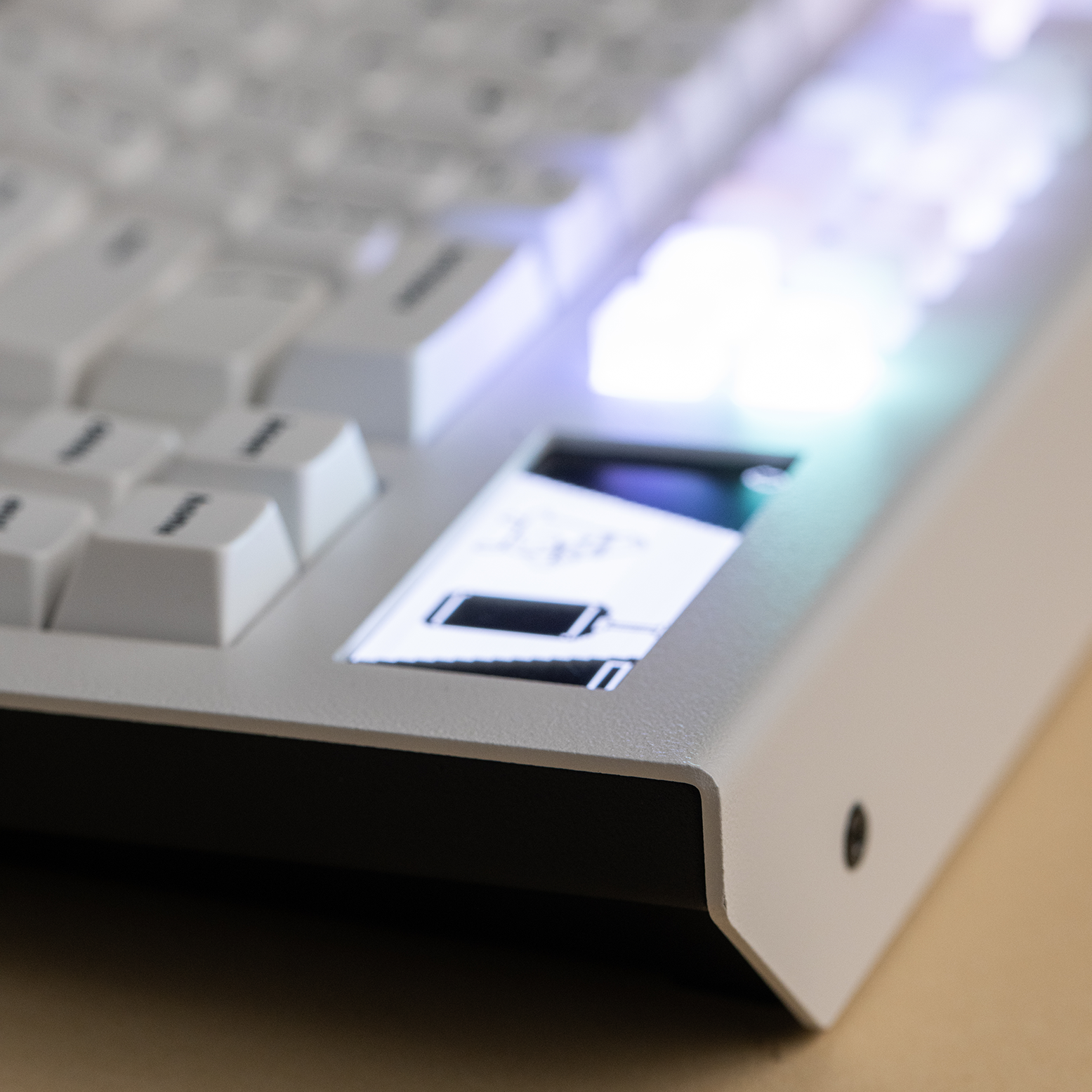

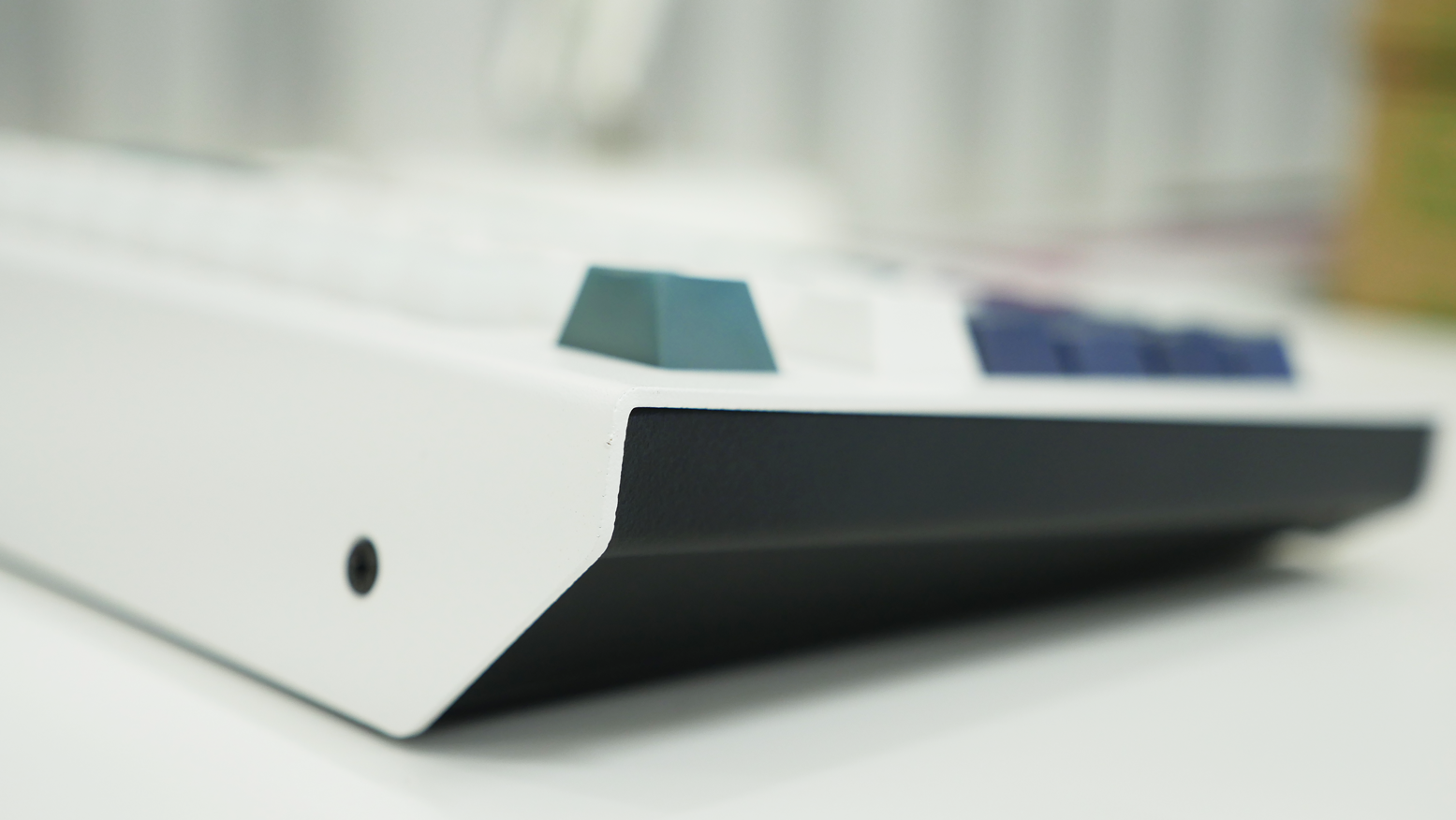

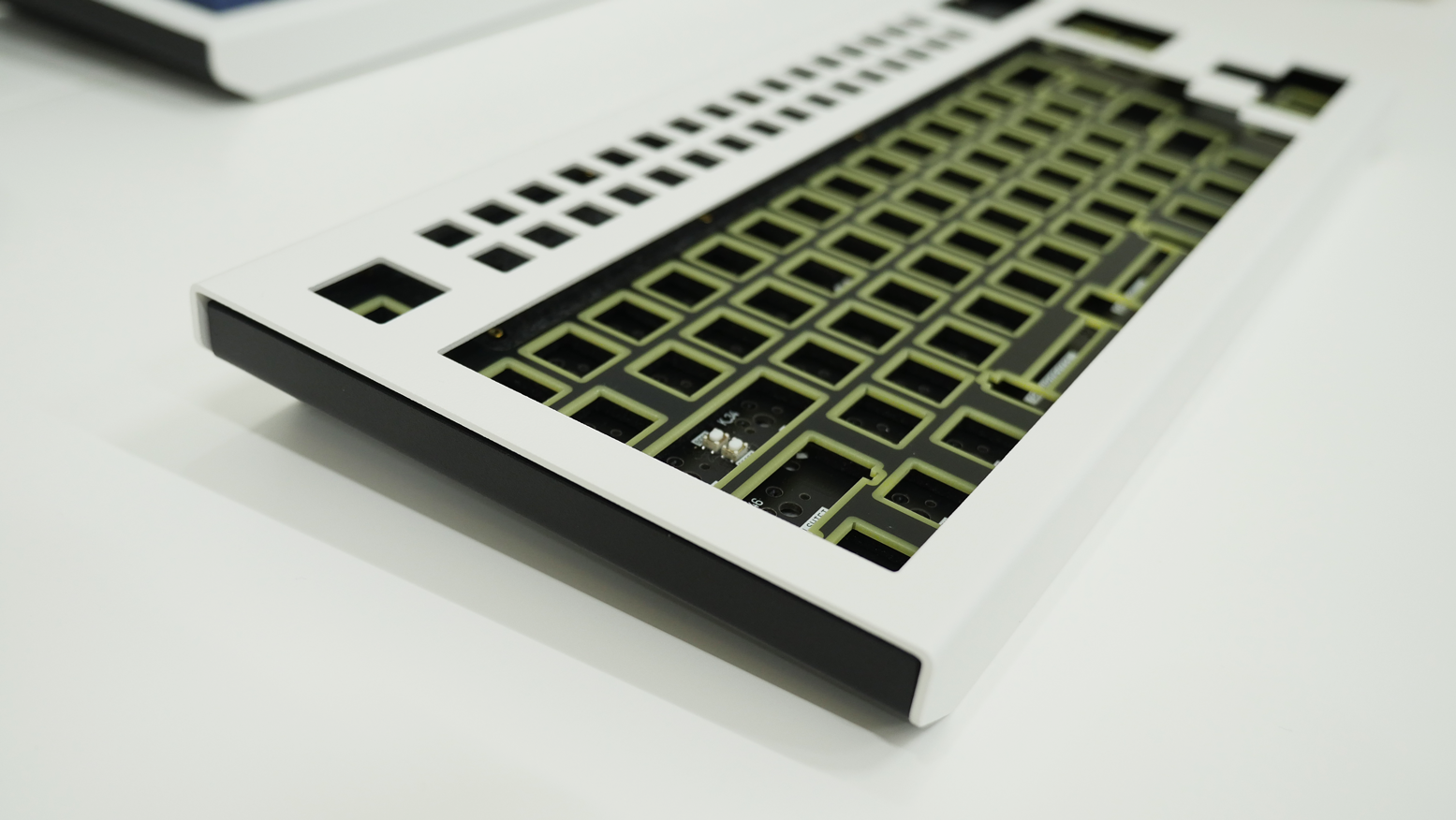

STEEL, Handmade, Artisan

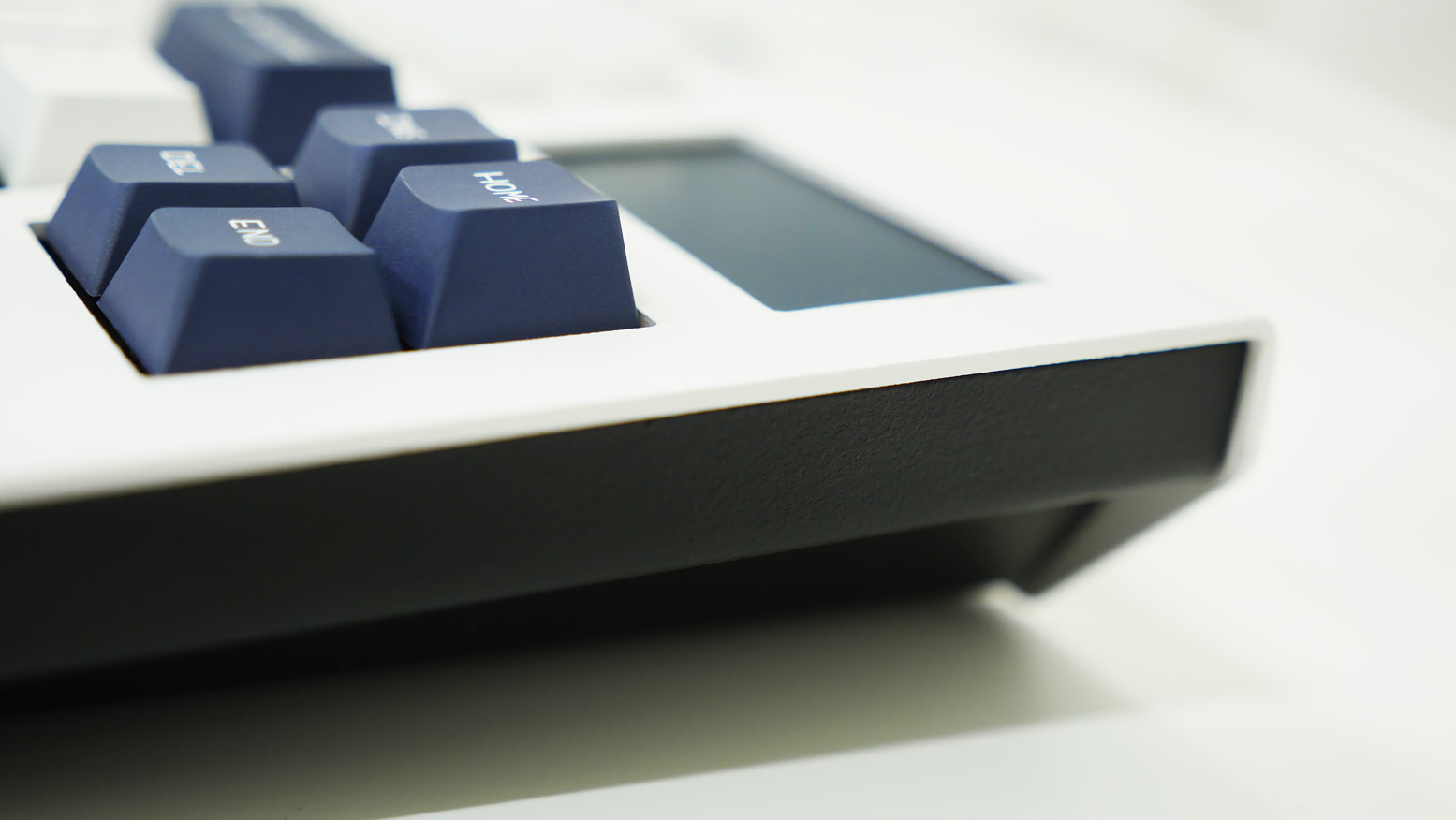

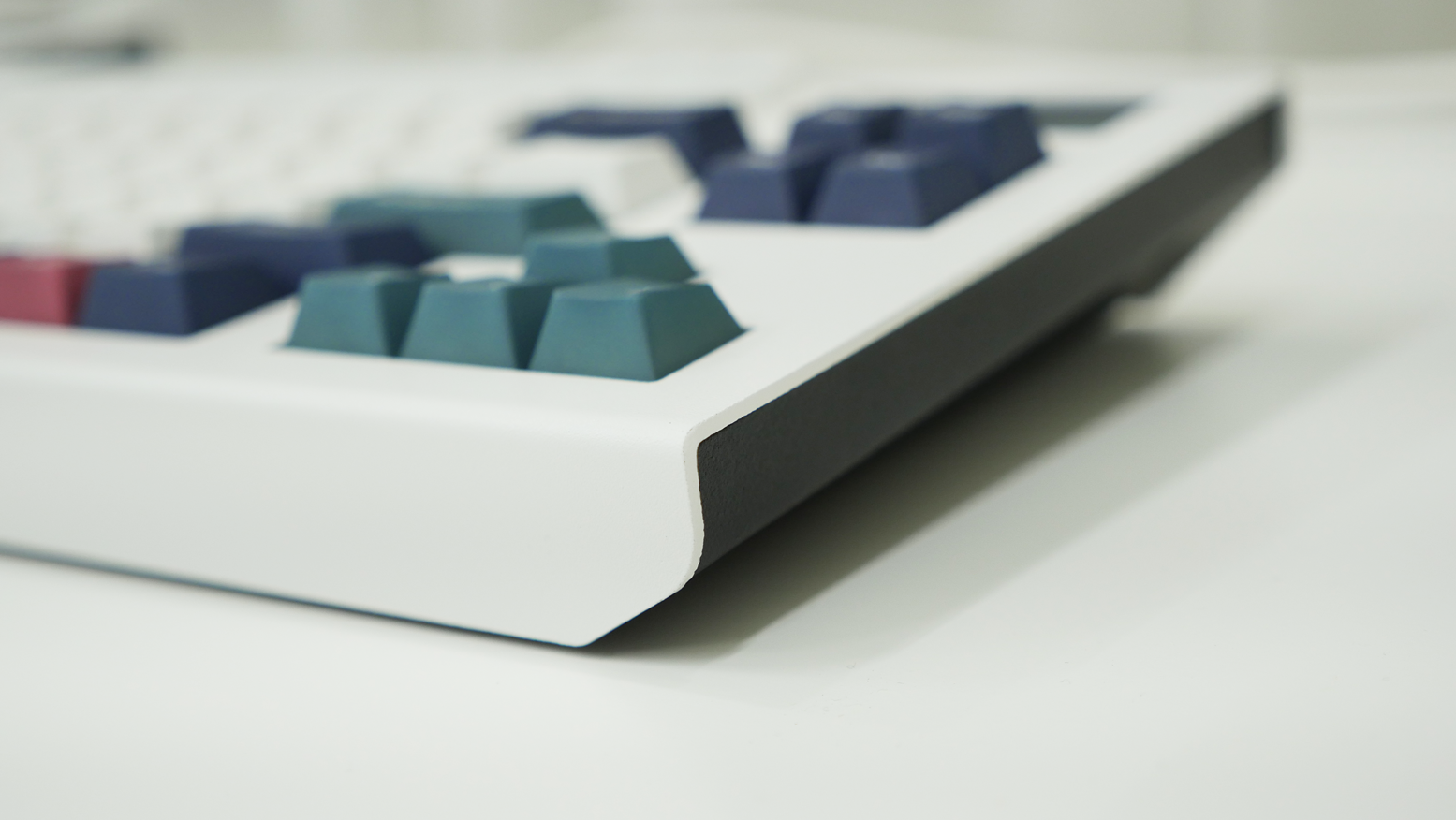

Out of strong, hard and heavy steel, each piece is made by skilled hands. This makes each keyboard piece very solid, and very unique. Yet, unlikely to the other methods, we can make LARGE surface in reasonable price range.
-
Real Scripting

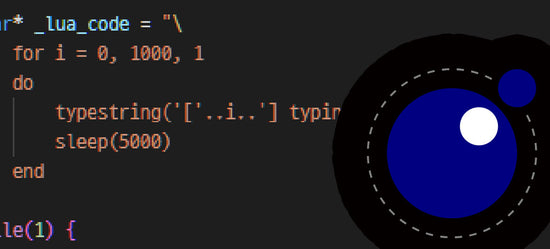

It doesn't have to be just a keycode or a simple macro that a key can do. We built the LUA engine in the keyboard so the users can allocate actual "Function" on a key. Of course it is also possible to use traditional macro for keys.
-
133MHz Dual Core Microprocessor

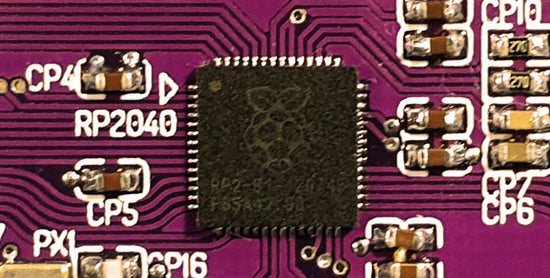

RP2040, Rather newly introduced microprocessor, is the heart of bitt101. Combined with 10MHz SPI multiplexer, It can scan the keys very quickly. And at the same time, processes all the other tasks like LEDs, game, and the user scripts.

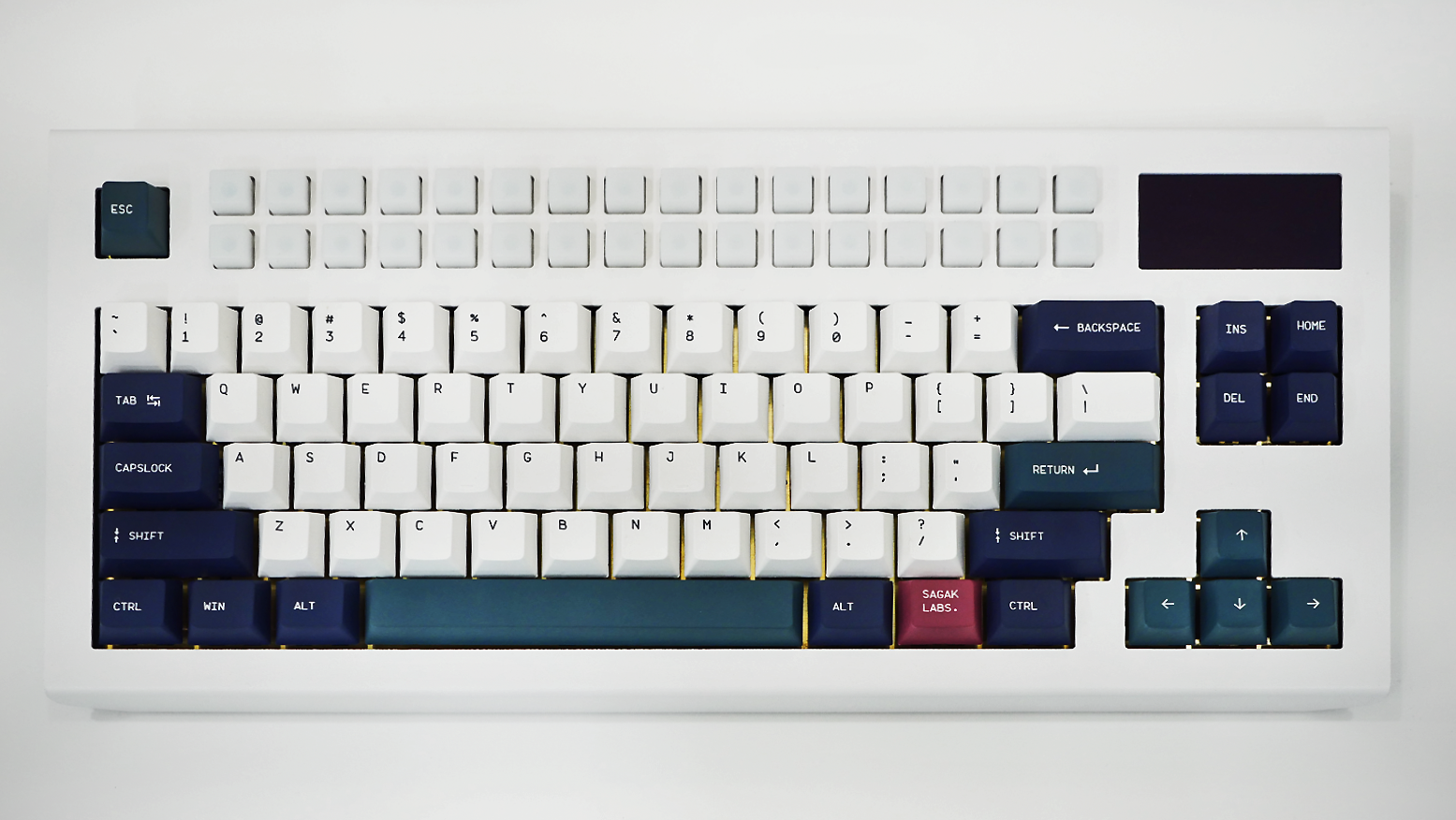

specification
Layout : 69keys + 32pads (= 101)
Dimension : 360 x 160 x 25/39
Weight : 2.5kg+
Typing Angle : 5 degrees
Display : 2.42" 128x64 OLED
Rubber Pad : Silicon
Plate : FR
Switch Mount : HotSwappable
PCB Mount : Tray
Mute Foam : EVA/PORON
materials
HOUSING
TOP: STEEL
BOTTOM: STEEL
PCBSUPPORT: STEEL
POWDER COATED
PLATE : FR4
PADS : SILICON
FOAM : EVA/PORON
Build by HeyAubri, with Unboxing/Instruction.
Typing Sound
